If your RC vehicle cuts out under load, especially under high throttle, this is one of the most common problems in the hobby.
In most cases, it is because of either low voltage cutoff or battery performance issues like voltage sag.
In this post, I’m going to break down exactly why your RC vehicle cuts out under load and how to diagnose whether it’s your ESC or your battery causing it.
Why does this happen?
When an RC vehicle cuts out under load, the first thing to check is the ESC low voltage cutoff.
This is a safety feature that shuts the system down when voltage drops too low.
So it may simply be the ESC protecting your battery. However, that’s not always the full story.
Battery Problems: A Weak Battery
A weak battery is one of the biggest reasons an RC vehicle cuts out under load. When a battery has high internal resistance, voltage drops sharply under throttle. That voltage drop can trigger the ESC cutoff even if the battery is freshly charged.
This is why this problem occurs more often with lower-quality or aging battery packs.
How to Confirm Why Your RC Vehicle Cuts Out Under Load

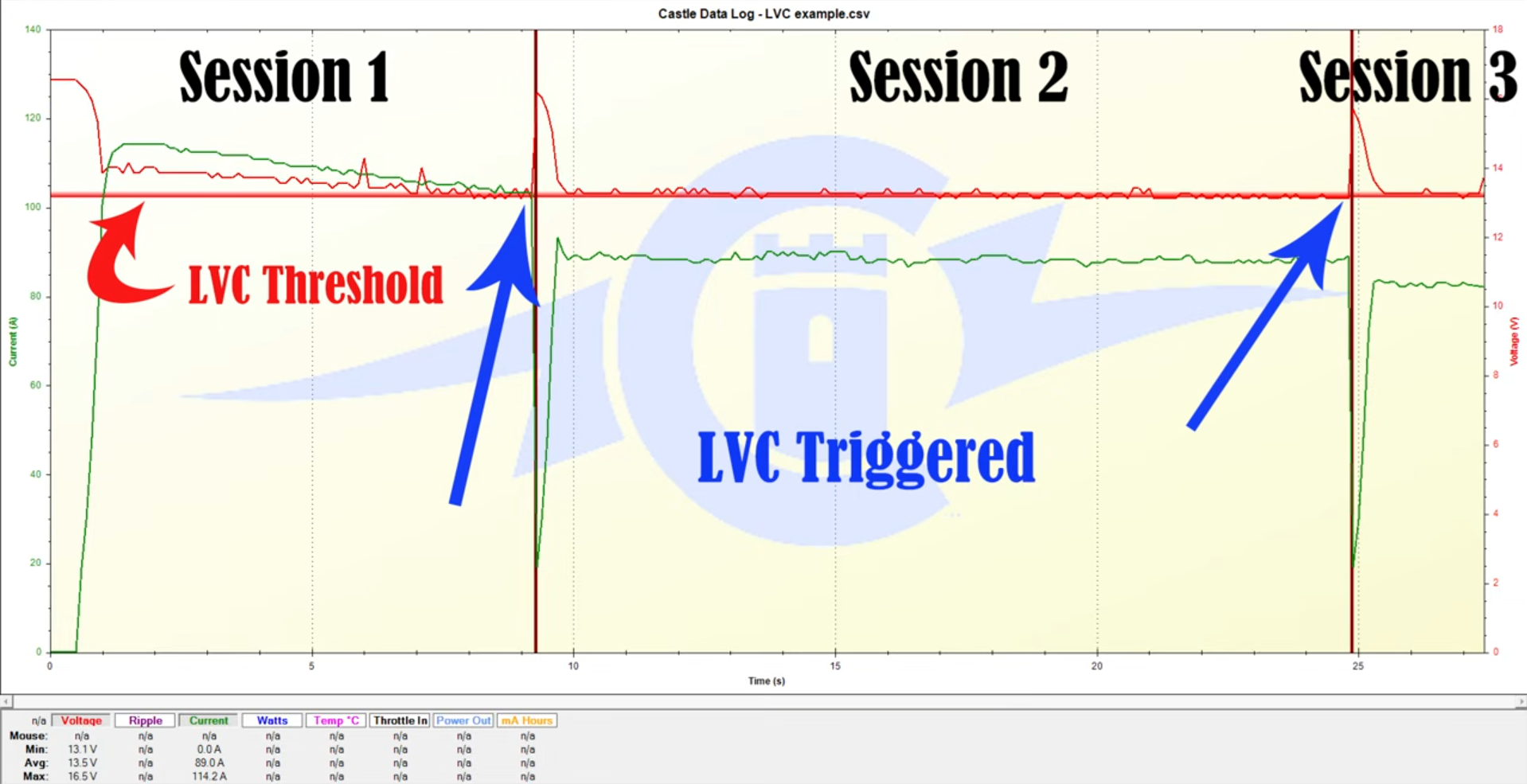

Checking data logging is the best way to confirm the issue.
With ESC data logs, you can check if:
- Voltage is dropping too quickly under throttle
- Cutoff happens early in the run
- Only a small percentage of the battery is used
If your vehicle cuts out after using only 10–20% of the pack, that strongly indicates a battery performance issue. Normally, you should be able to use 80–85% of the pack before cutoff.
Battery problems: Internal Resistance
Internal resistance could be another key reason.
When internal resistance is high, the battery cannot supply current efficiently.
That causes:
- Voltage sag under throttle
- Early ESC cutoff
- Reduced usable capacity

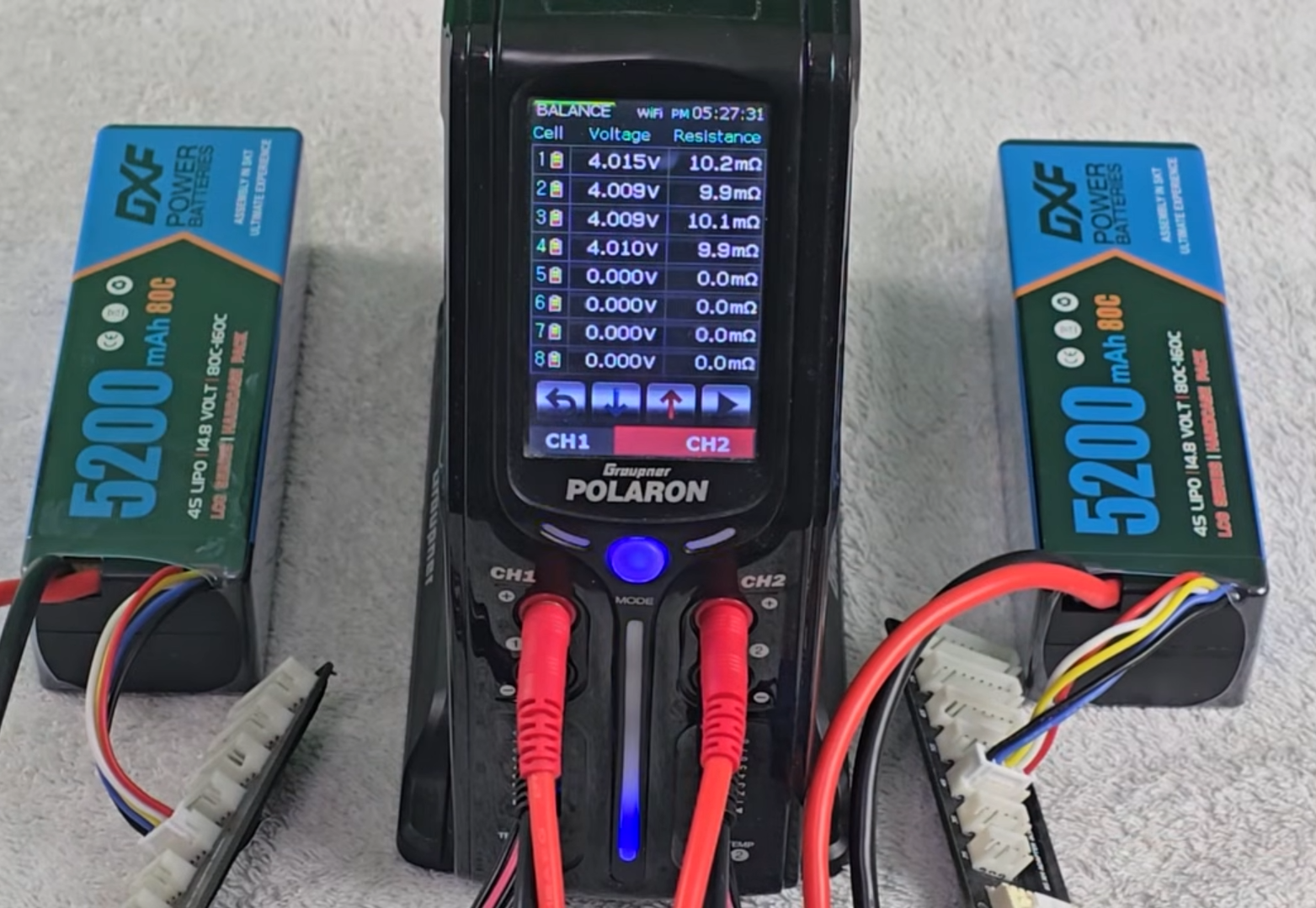

Comparing internal resistance between batteries is one of the best diagnostic tools.
Why RC Vehicle Cuts Out Under Load Happens on New Batteries
Right after charging, voltage should be at its peak (4.2V per cell).
If the RC vehicle still cuts out under load immediately, the battery is likely incapable of handling current demand.
This usually points to a poor-quality or defective pack.
High Load Makes RC Vehicle Cut Out Worse
High-demand setups make this issue more obvious.
Vehicles like:
- 1/8 scale bashers
- Electric ducted fans
- High-speed boats
can easily pull over 100 amps.
Under those conditions, an RC vehicle cuts out much faster if the battery cannot maintain voltage.
Why You Should NOT Just Lower Cutoff
A common mistake is lowering the low voltage cutoff when an RC vehicle cuts out under load.
This is not a real fix.
It may stop the cutoff temporarily, but it:
- Over-discharges good batteries
- Reduces battery lifespan
- Increases long-term risk
Instead of fixing the issue, you’re just removing protection.
A Real Fix
If your RC vehicle cuts out under load due to battery sag, the real solution is upgrading the battery.
A better battery with lower internal resistance will:
- Hold voltage better under load
- Reduce voltage sag
- Prevent early cutoff
In most cases, this completely solves the problem.
Key Takeaways
- RC vehicle cuts out under load is usually caused by voltage sag or low voltage cutoff
- High internal resistance batteries struggle under load
- Data logs are the best way to diagnose the issue
- Early cutoff usually means poor battery performance
- Lowering cutoff is not a safe fix
- Better batteries solve most issues
Final Thoughts
If your RC vehicle cuts out under load, don’t immediately assume your ESC is faulty. In most cases, the real issue is battery performance under stress. Once you understand how voltage sag and internal resistance work, diagnosing these issues becomes much easier.
